Customizá Vel Electric Mica Heating Element Heating Frame Heating Core PARA Banheiro Inteligente
Model NO.
Model No.: YDX-0062
Form: Spiral Heating Element
Shape: Square
Size: 60*50*75mm
Power: 50W-2000W
Voltage: 100V-240V
Appliance: Heating, Household Appliance
Conductor Material
Copper Clad Steel: Thermostat 85 Degrees with UL/VDE Certificate
Transport Package: Carton Box Packing
Specification: 420pcs/ctn Box Size: 50*41*44cm
Trademark: YIDA
Origin: Zhongshan China
HS Code: 8516909000
Production Capacity: 5000PCS/Week
Description

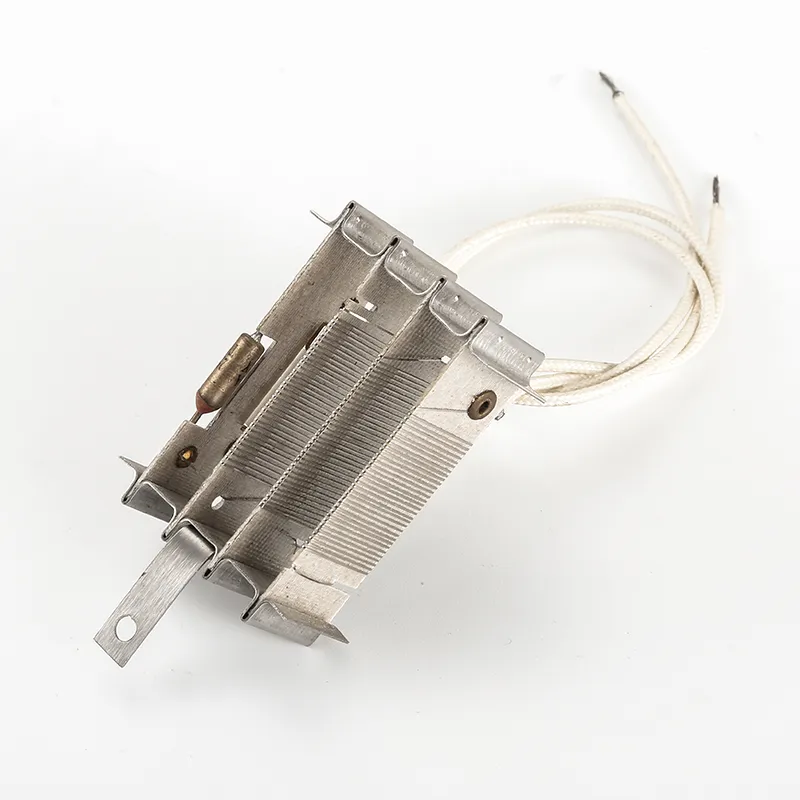

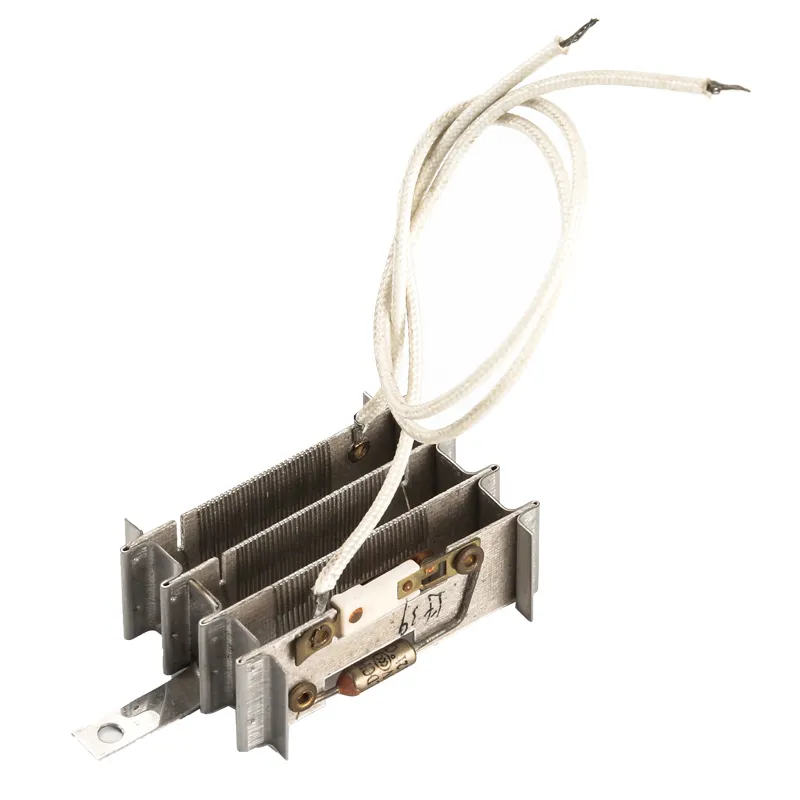

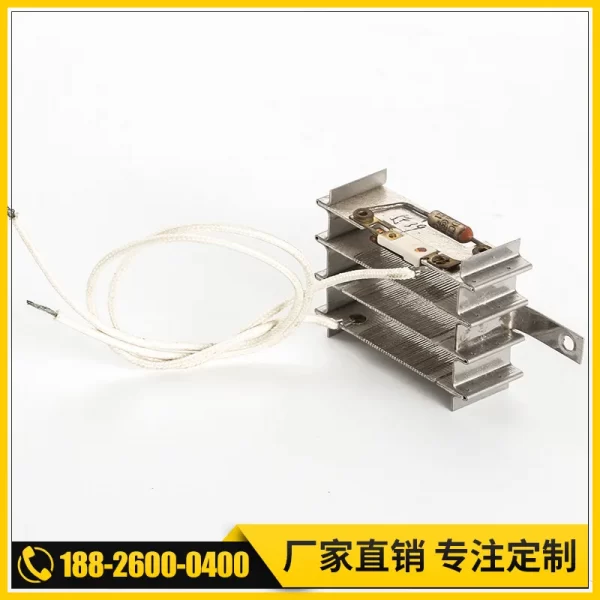

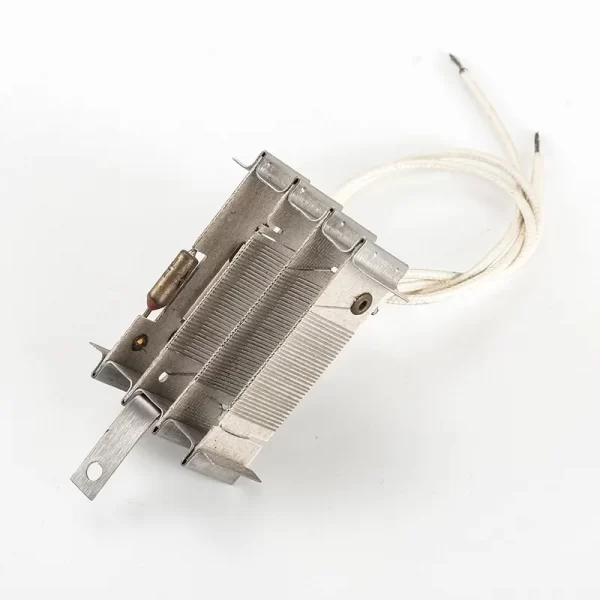

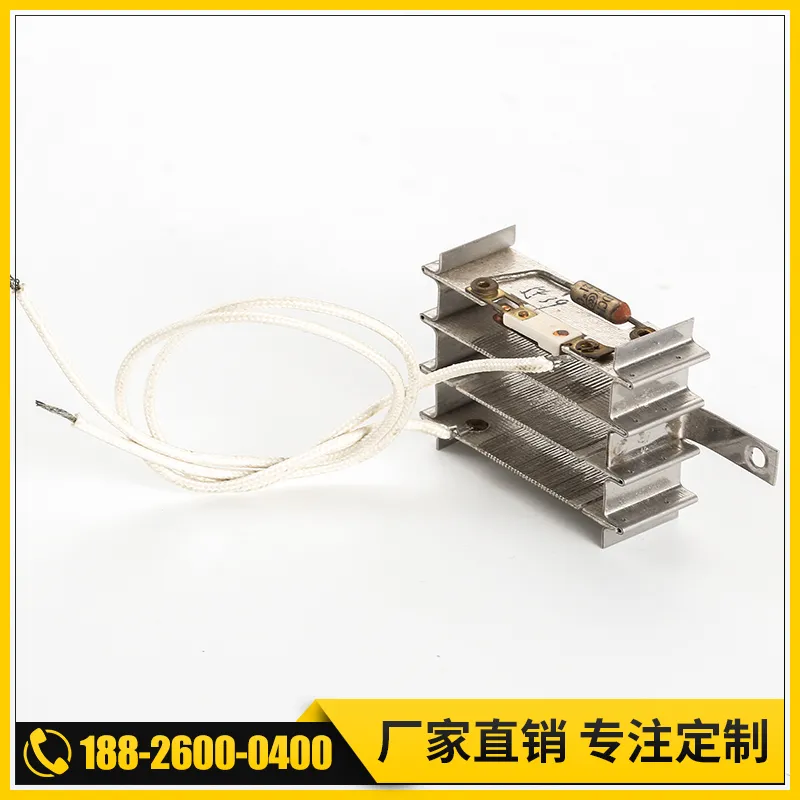

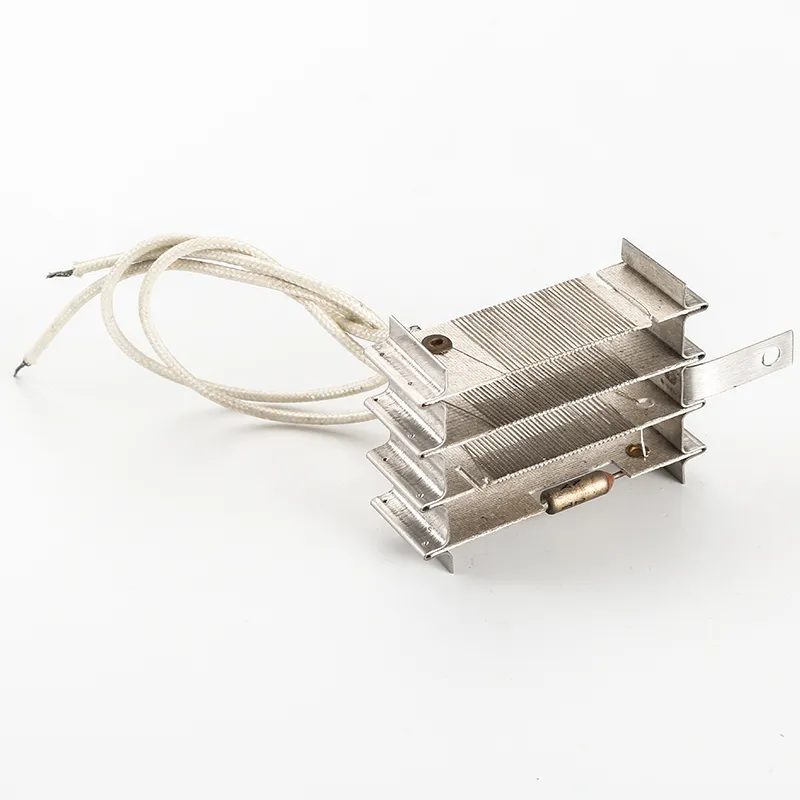

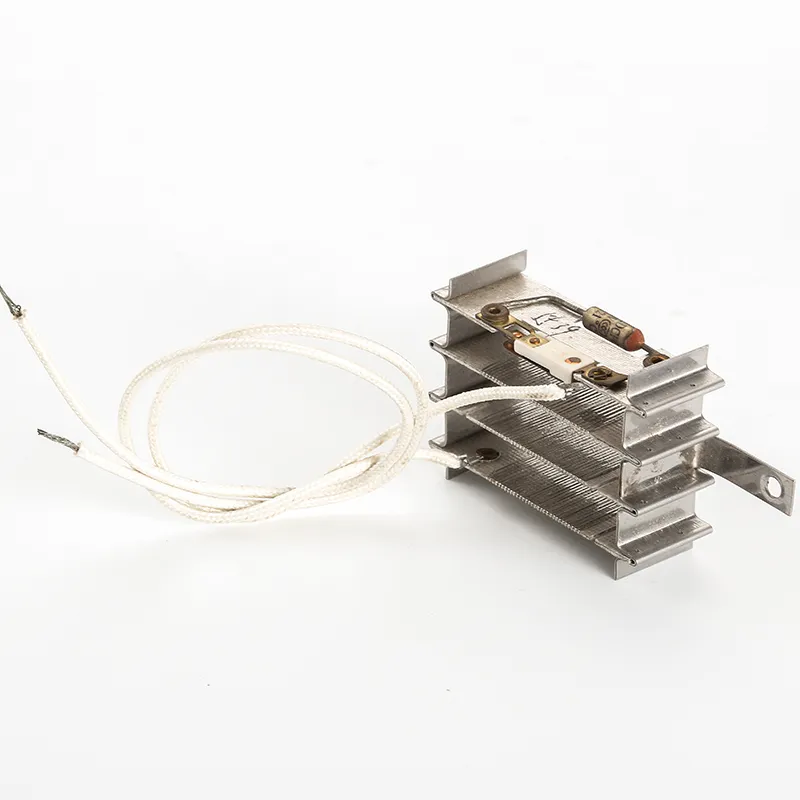

Heating Core for Smart Toilet Customizable Electric Mica Heating Element Heating Frame Heating Core for smart toilet
| Mica heating element | Natural mica / artificial mica |
| Resistance Heating Wire | Ni80Cr20 / 0Cr25Al5 / KD wire |
| Property | Good insulating and high temperature resistance (F/C800 °C) |
| Difference shape | by adding galvanized sheet or stainless sheet. |
| Application | Air-conditioner/ hand dryer/desiccator /electric blower / humidifier… |
| Service life | 8500 hours |
Packing : Carton box packing
Box Size:50*41*44cm; Packing:420pcs/ctn
20’container: 130000pcs
Specifications/Special Features
Boad temperature range of 260º to 450°C provides faster processing and cycle times for production.
Voltage :5V-380V(AC)
Normal power rating: International standard
Voltage performance: Can resist AC 2000V/0.75 mAh/ 1 min impact without breakdown, no flashover in normal state >100MΩ Insulating performance.
Usage life :>8000 hours
High watt density capability to 110 W/in² (17 W/cm²)
Features
1. Energy efficient
2. Economical
3. Reliable
4. Mica and high grade resistance wire
5. Uniform heat distribution
6. Fast heating
Technique parameter:
| Name | Mica heating core |
| Voltage | from 5V-380V or customized according to customer requirements. |
| Heating material | OCr25Al5A, Ni80Cr20 |
| Insulation material | Grade A mica plate |
| Temperature | <200 ºC |
| Power | in principle, according to customer requirements, but not more than the carrying capacity of mica plate. |
| Applicable to | electric fireplace, dishwasher, hair dryer, small appliances. |
FAQ :
1.Q: Are you factory or trade company?
A: We are factory.
2.Q: Can I have a sample order?
A: Yes, sample order is available.
3.Q: What is the lead time?
A: Within 7-10 days, also according to the order volume.
4.Q: What is your payment terms?
A: 30% TT deposit in advance and 70% balance before shipment.
Available for samples without any charge ！
